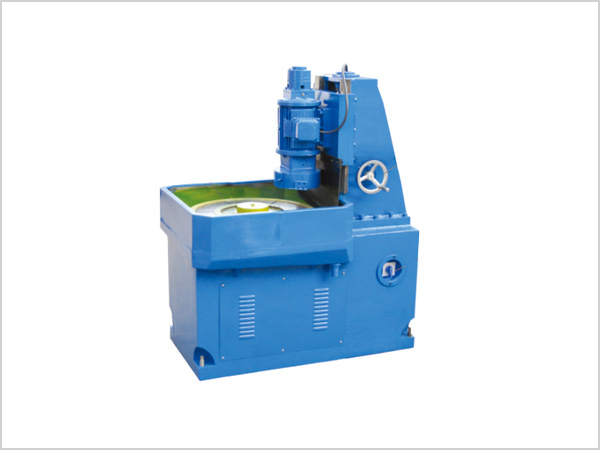

HM-JD600 Single Diamond Grinder
| model |
HM-JD600 |
| max working diameter/mm |
550 |
| mini working thickness/mm |
1.5 |
| Precision |
Parallelism/mm |
≤0.03 |
| roughness/RA |
0.8 |
| Thickness Tolerance/mm |
±0.03 |
| Diamond wheel |
diameter/mm |
180*32 |
| speed R/MIN |
2860 |
| motor KW |
3-4KW |
| working table |
diameter/mm |
600 |
| speed R/MIN |
1-300/min |
| motor KW |
1.5KW |
| size(lenth×width×high) mm |
1250×750×1550 |
| weight kg |
1500 | |
The machine features:
Single diamond grinder, mainly the lapping head and the rotary table is composed of two parts.lapping head is made of high speed operation of the motor to drive the diamond lapping wheel, lapping of workpiece, and the rotary table kept delivering a workpiece from the wheel, passing under, finish lapping work.lapping speed, high efficiency.
Scope of application:
For a variety of metal and non metal material of the workpiece plane rough lapping.Particularly suitable for coarse lappinging superhard materials such as: carbide, silicon carbide, ceramics, sapphire, hardware, the cylinder piston ring.
|
